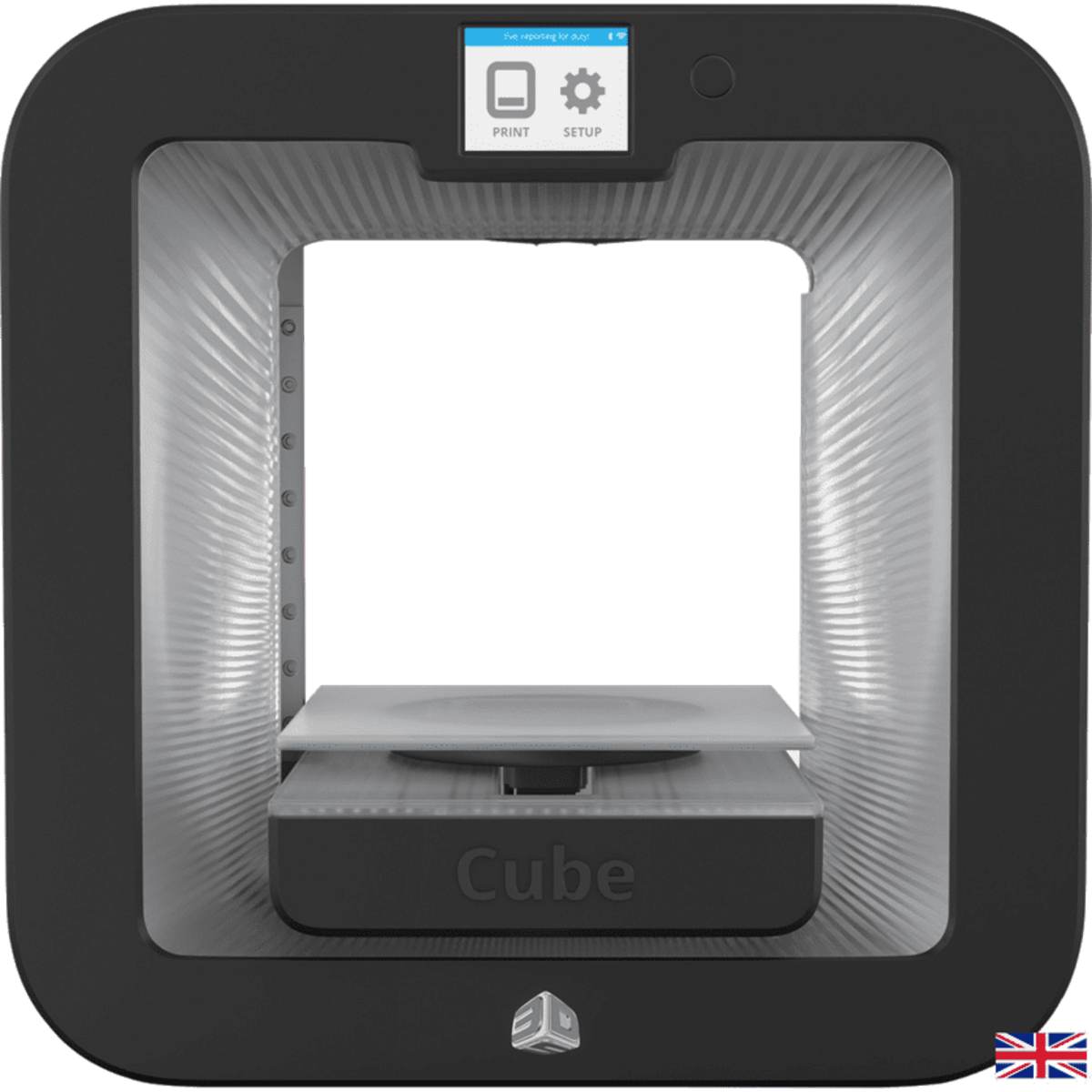

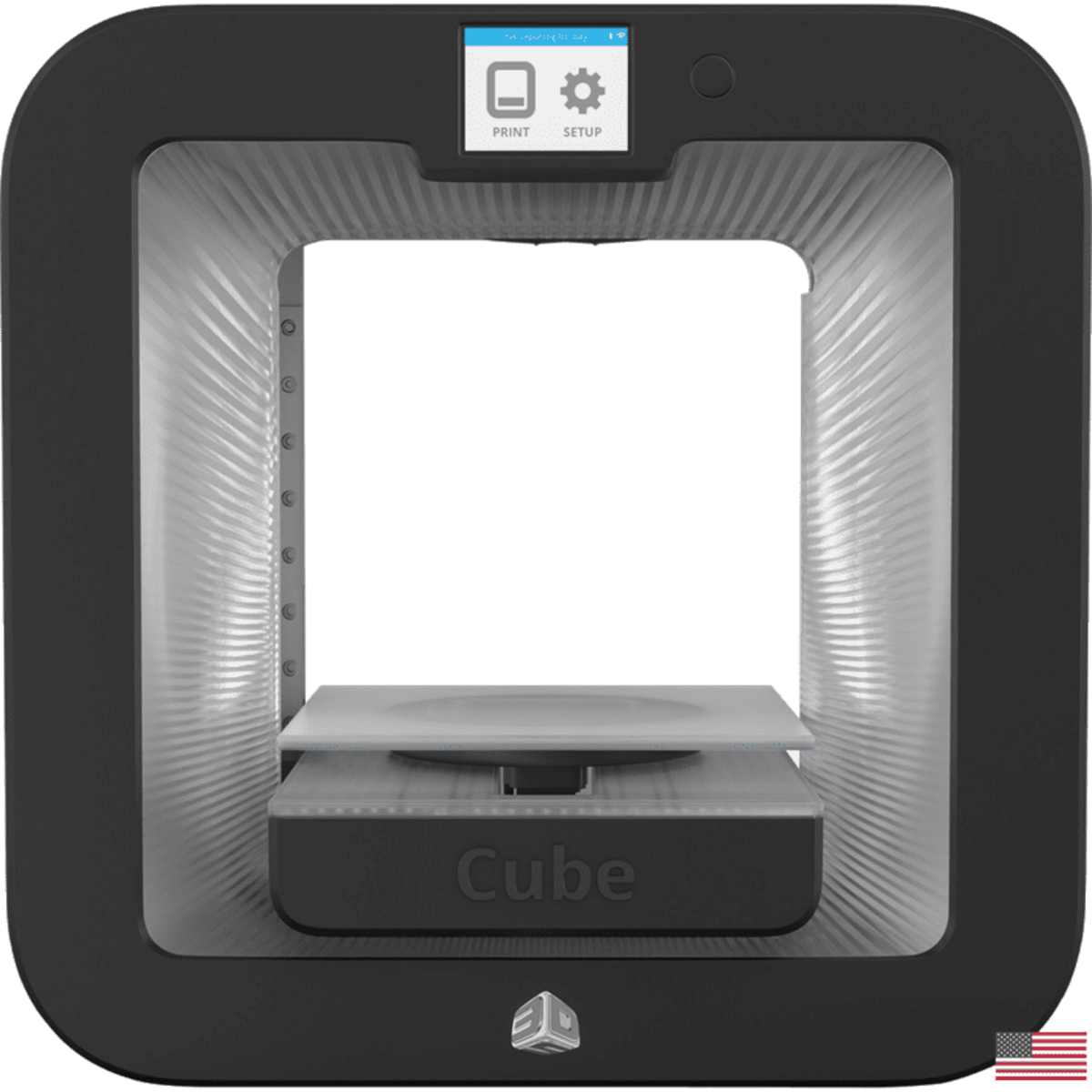

3D Cube Pro Printer
Details
Manufacturer: 3D Systems, Inc.
Manufacturer Part Number: 401397-00
Manufacturer Website Address: http://www.3dsystems.com
Brand Name: 3D Systems
Software:
All CubePro printers include complimentary conversion software. This application converts your 3D model into layered slices (G-code), ready for printing on your machine.
Other features and uses of CubePro software include:
Basics:
Clear, familiar and easy-to-use interface
Scaling, rotating and movement of parts on a simulated print bed
Proven default settings for all CubePro 3D printers
Ability to create custom profiles as needed
Imperial/metric conversion available
Built-in STL file verification
Combined part and tool path viewer
Profiles for multiple material/support materials
Windows Requirements: 32bit Or 64 Bit Operating Systems:
Windows 7
Windows 8
Windows 8.1
Windows is required for ad-hoc WiFi print job submission – if not already installed, the Cube software will automatically install the Microsoft .NET 4.0 framework
Tech Specs:
Z-AXIS RESOLUTION: 0.100mm (0.004" / 100 microns)
LAYER THICKNESS: 70 microns, 200 microns and 300 microns for fast mode. Available for all three models.
PRINT TOLERANCE: X and Y axis ± 1% dimension or ± 0.2mm (0.008" / 200mm microns) whichever is greater. Z axis ± half the processed z resolution. Shrinkage and warpage can occur on models and is purely geometry dependent.
PRINT SPEED EXTRUDED VOLUME: Maximum 15mm (9/16") per second and polymer dependent
POWER REQUIREMENTS: 100 - 240v AC
MAXIMUM OPERATING TEMPERATURE AT EXTRUDER TIP: 536°F / 280°C
SUPPORT MATERIAL: PLA / ABS / dissolvable natural PLA
SUPPORT REMOVAL: Break away supports with pliers or cutters or just fingers where appropriate. PLA plastic is soluble in sodium hydroxide solution used with a heated ultrasonic cleaner (care is required with this option)
Ratings & Reviews
3 reviews
Super well designed and easy to use
by anonymous -
I've had my CubePro Trio for three months now and I really really like it. I got it setup super quick and was printing right away. I own several 3D printers and most of them have consistent problems and require TLC to get working and keep alive, but not the CubePro. The CubePro is my main printer now because it needs very little babysitting, prints consistently and at always at high quality (low fail rate!). The work flow is simple too with the new slicing software (which is much better than previous generations)... and this is key for me because I'm not a designer or an engineer... I need a machine that is easy to use. I have also successfully printed large items, which is not easy for 3D printers to do.
Amazing 3D Printer
by anonymous -
Amazing 3D Printer! I am really surprised to find a consumer product priced printer with an industrial print quality.
Works well!
by anonymous
Just got this 3D printer in my office. It came on a pallet which was weird but once we got it out of the box and registered online it worked great. The setup was much easier than we expected and the on-screen instructions were pretty easy to follow even without reading the manual. It came with some free files which was nice and we printed those first. We've been printing our own designs all week and haven't encountered any issues. Overall, a very cool product.
